8-1-4 -8-7-8 Double Bolt
8-1-4 -8-7-8 Double Bolt

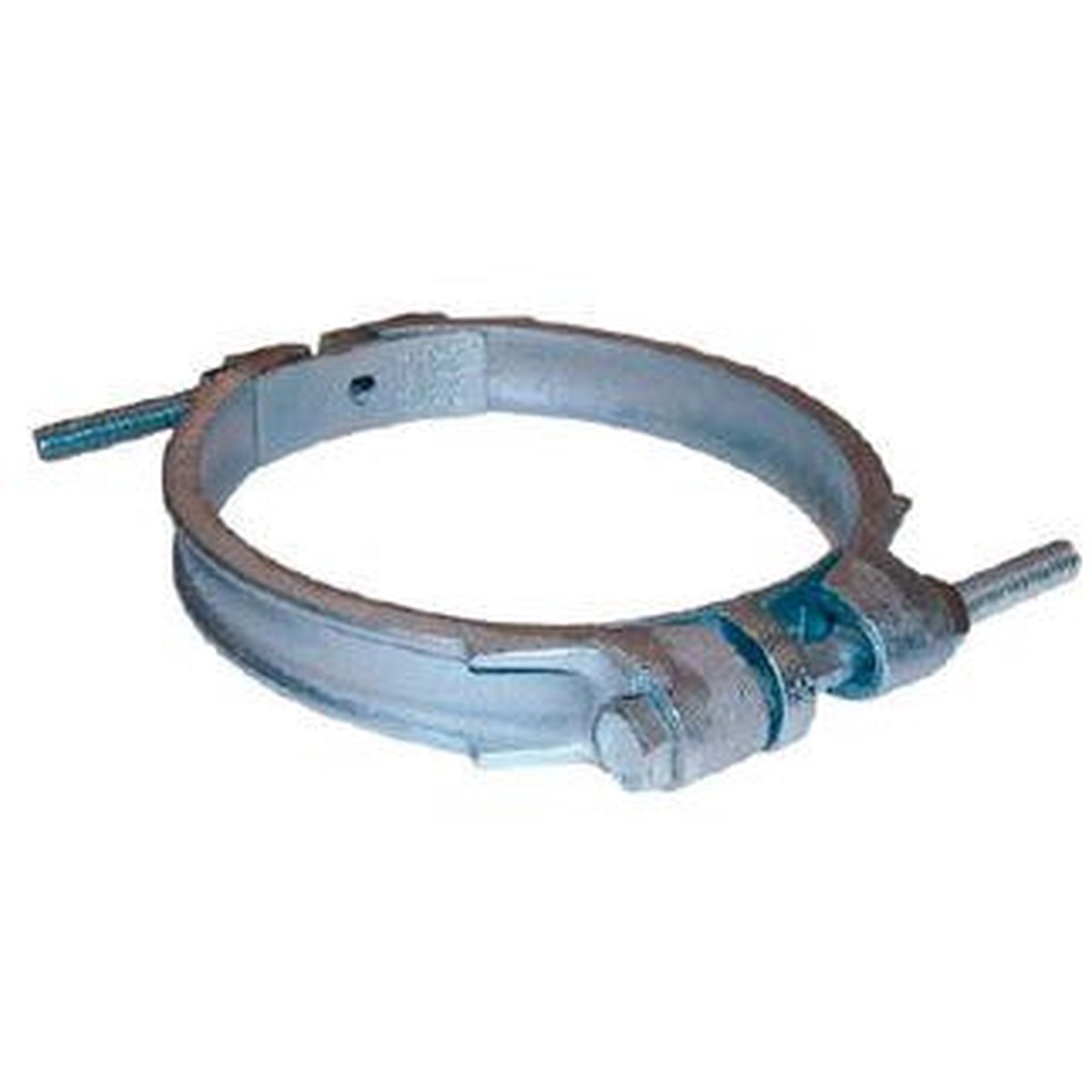

The 8-1-4 -8-7-8 Double Bolt is a hose or pipe clamp that uses two bolts to securely fasten hoses or pipes in place. This heavy-duty hose clamp designed to provide superior clamping force on large-diameter hoses. It guarantees a secure...
The 8-1-4 -8-7-8 Double Bolt is a hose or pipe clamp that uses two bolts to securely fasten hoses or pipes in place. This heavy-duty hose clamp designed to provide superior clamping force on large-diameter hoses. It guarantees a secure and uniform tightening around the hose or pipe, avoiding leaks or slippage. The iron construction ensures durability and resistance to high-pressure applications.
| Specification | Value |
|---|---|
| TYPE | Double Bolt |
| DESIGN | Dual Bolt Design, 2 bolts positioned across each other ensure even tightening of the clamp. |
| MATERIAL | Ductile Iron ensures durability and resistance to high-pressure applications. |
| WEIGHT (LBS) | 5.290 |
| FINISH | Zinc-Plated |
| MAXIMUM CLAMP DIAMETER | 8-7/8″ |
| MINIMUM CLAMP DIAMETER | 8-1/4“ |
| NOMINAL SIZE | 8-1/4“ |
| NUMBER OF BOLTS | 2 |
| SERIES | DBC Series |
| TORQUE RATING | 125 ft-lb |
| APPLICATIONS |
Ideal for HVAC Systems, Plumbing Systems, Automotive, Marine, Agricultural, Industrial Systems, Food and Beverage. |
| BRAND | Midland Industries |
