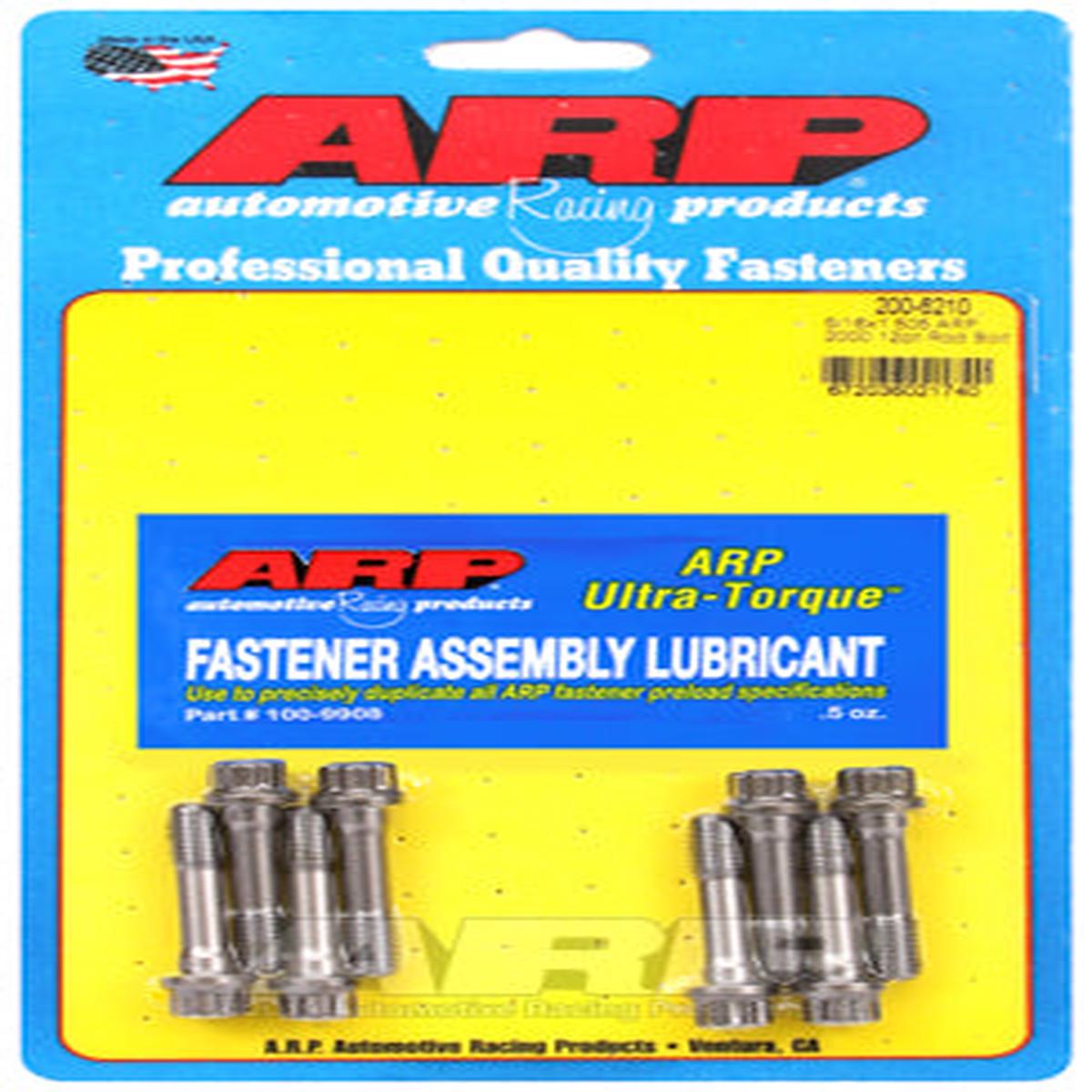

ARP 200-6210 Replacement Rod Bolt Kit 5/16? 8 - piece set
ARP 200-6210 Replacement Rod Bolt Kit 5/16? 8 – piece set
Specifications Material ARP2000 1) Thread Size 5/16 2) UHL 1.500 3) Thread Length 0.550 4) Grip Length 0.150 5) Head Height 0.348 6) Socket Size 3/8 12pt 7) Collar Dia. 0.526 Kit Instructions:We provide the stretch and torque values below...
| Specifications | |
|---|---|
| Material | ARP2000 |
| 1) Thread Size | 5/16 |
| 2) UHL | 1.500 |
| 3) Thread Length | 0.550 |
| 4) Grip Length | 0.150 |
| 5) Head Height | 0.348 |
| 6) Socket Size | 3/8 12pt |
| 7) Collar Dia. | 0.526 |
Kit Instructions:We provide the stretch and torque values below as a general guide. Please contact the rod manufacturer using the chart below for the exact values for your bolt and rod combination. Rod Bolt stretch and torque values for aftermarket rods are determined by the rod manufacturer. If they provide any information online, we have linked directly to it with the Website link.
Stretch & Torque Values
Stretch: 0.0050 – 0.0055 in.
Bolt Torque Value: 30 ft-lbs (41 Nm) with ARP Ultra-Torque Fastener Assembly Lubricant
