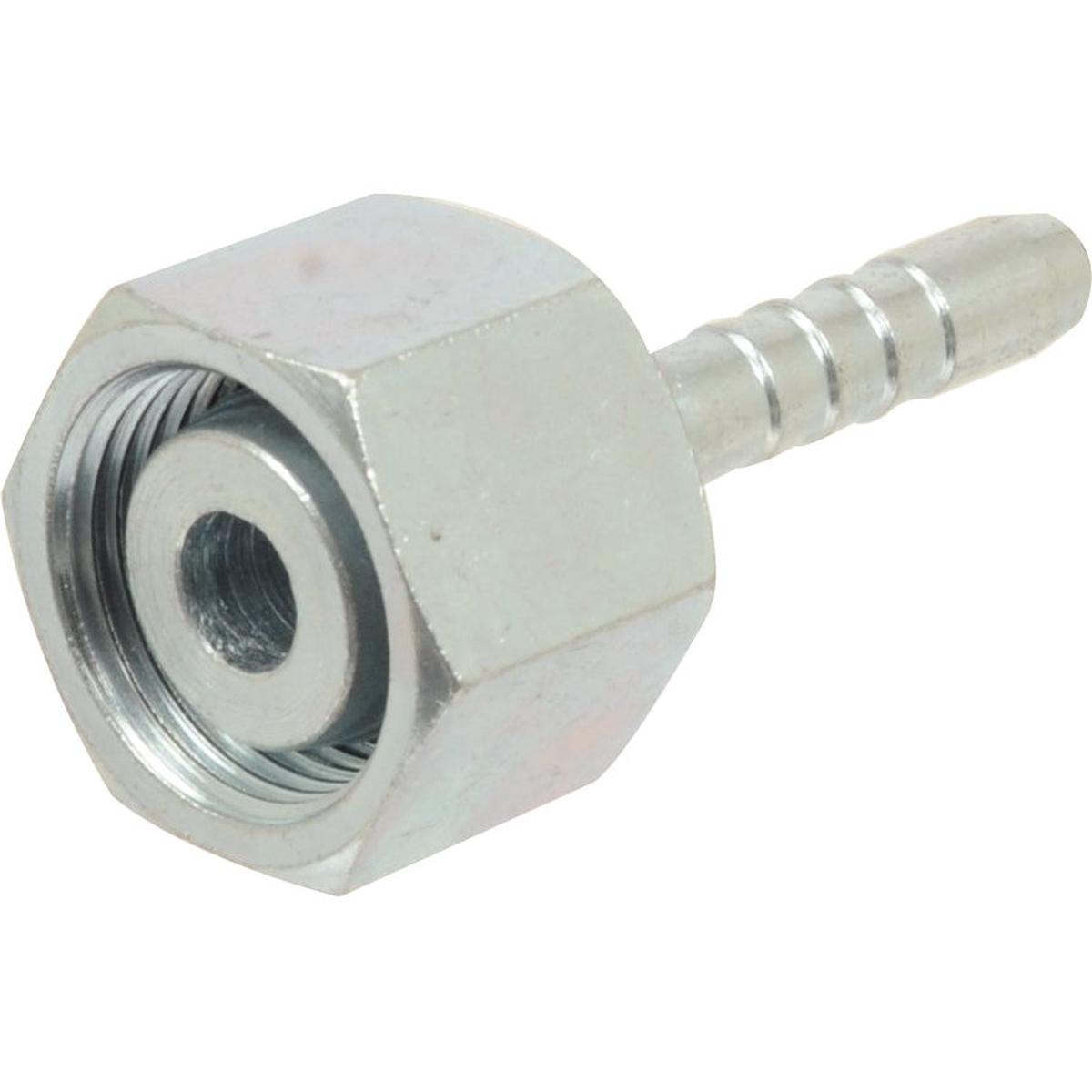

Dicsa Metric (French Gas) 24 Hose Insert 3/4in X M36 X 1.5 Female Thread Straight Swivel - Sparex Part S.116902
Dicsa Metric (French Gas) 24 Hose Insert 3/4in X M36 X 1.5 Female Thread Straight Swivel – Sparex Part S.116902
Dicsa Metric (French Gas) 24 Hose Insert 3/4'' x M36 x 1.5 Female Thread Straight SwivelProduct SpecificationsBrandDicsaCone Angle24C (mm)15DN (inches)3/4DN (mm)19.05Fitting Type2 Piece FittingHex1 (mm)41Hose Inner (inches)3/4Hose Inner (mm)19.05Length (mm)81.5L1 (mm)39Nominal I.D.DN20PositionStraight SwivelReference245043626712Related Products112569, 116655Tariff Code7307199000Thread TypeFemale ThreadThread Size (R1)M36...
Dicsa Metric (French Gas) 24 Hose Insert 3/4” x M36 x 1.5 Female Thread Straight Swivel
Product Specifications
| Brand | Dicsa |
|---|---|
| Cone Angle | 24 |
| C (mm) | 15 |
| DN (inches) | 3/4 |
| DN (mm) | 19.05 |
| Fitting Type | 2 Piece Fitting |
| Hex1 (mm) | 41 |
| Hose Inner (inches) | 3/4 |
| Hose Inner (mm) | 19.05 |
| Length (mm) | 81.5 |
| L1 (mm) | 39 |
| Nominal I.D. | DN20 |
| Position | Straight Swivel |
| Reference | 245043626712 |
| Related Products | 112569, 116655 |
| Tariff Code | 7307199000 |
| Thread Type | Female Thread |
| Thread Size (R1) | M36 x 1.5 |
| Thread Type | Metric (French Gas) |
Compatibility Information
This product is not associated with any particular make or model.
Manufacturer Information
This product is not associated with any specific OEM part number.
