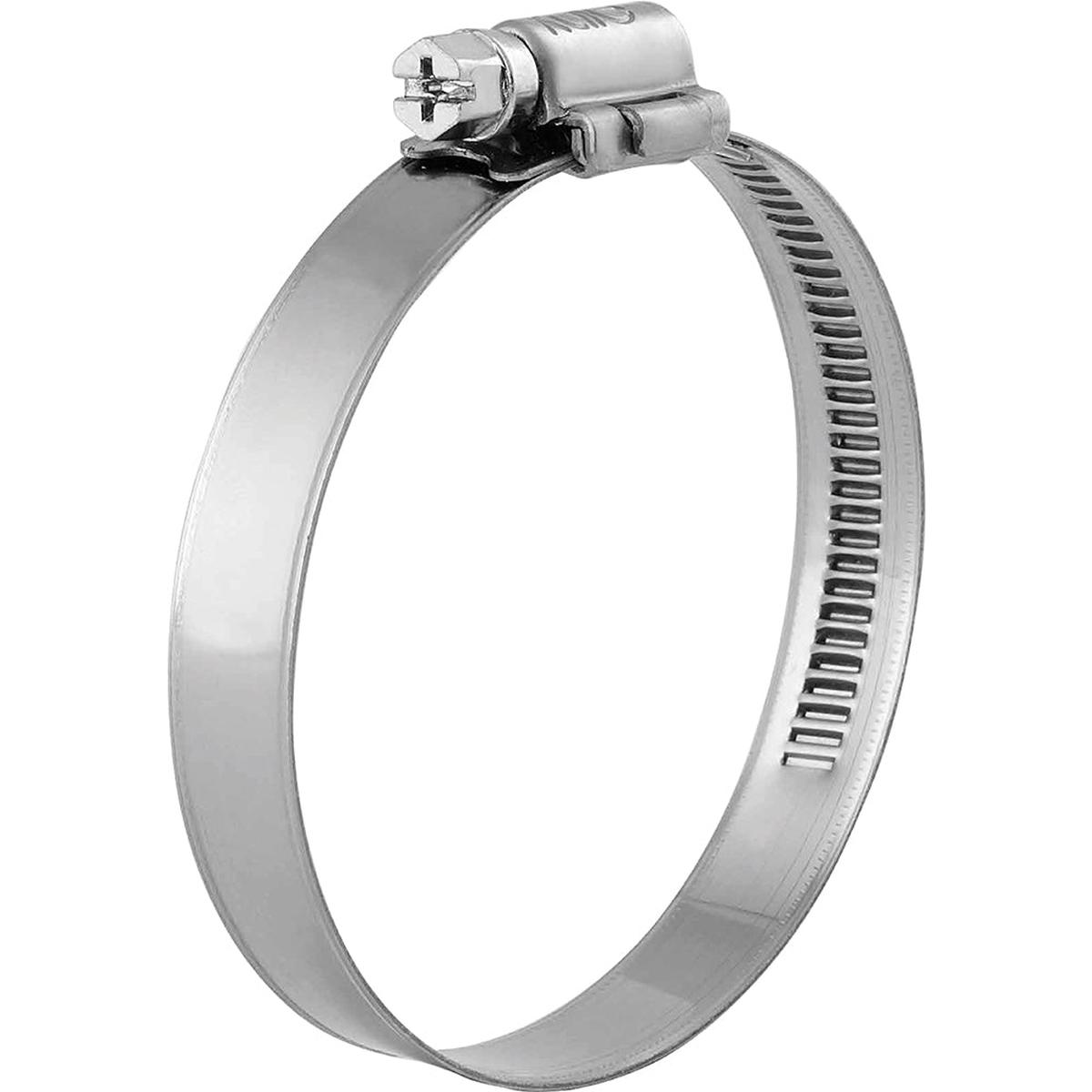

WD1280100W4 – 12mm Band Width Worm Drive Clamp
WD12 | 80-100mm capacity | W4
Features: Light product easy assembly and space saving withcompact housing and screw design. Stronger and durable with the mechanically locked singlepiece design of housing. Burr-free and convex band edges. 100% traceability on the product. Higher tightening torque and clamping force with 12mmband width. High clamping force with low tightening torque.
Technical Spec: Band Width – 12mm Capacity (min – max) – 80-100mm Tightening Torque (max) – 5.0Nm (1) Screw Housing Length – 24mm Grade W4 – Stainless Screw Band & Housing (2) Corrosion Resistance (min.Hour) IS0 9227 – 240 Screw Head – FL | 7mm Hex
(1) Recommended tightening torque. Recommended tighteningspeed 300 – 350 rpm(2) Screw – 1.4567 Stainless DIN EN-10088-3 or equivalent |Housing & Band – 1.4301 Stainless DIN EN-10088-2 orequivalent
KALE is certified with ISO TS 16949 ISO 9001 ISO 14001management systems as per the expectations of the globalautomotive industry.
