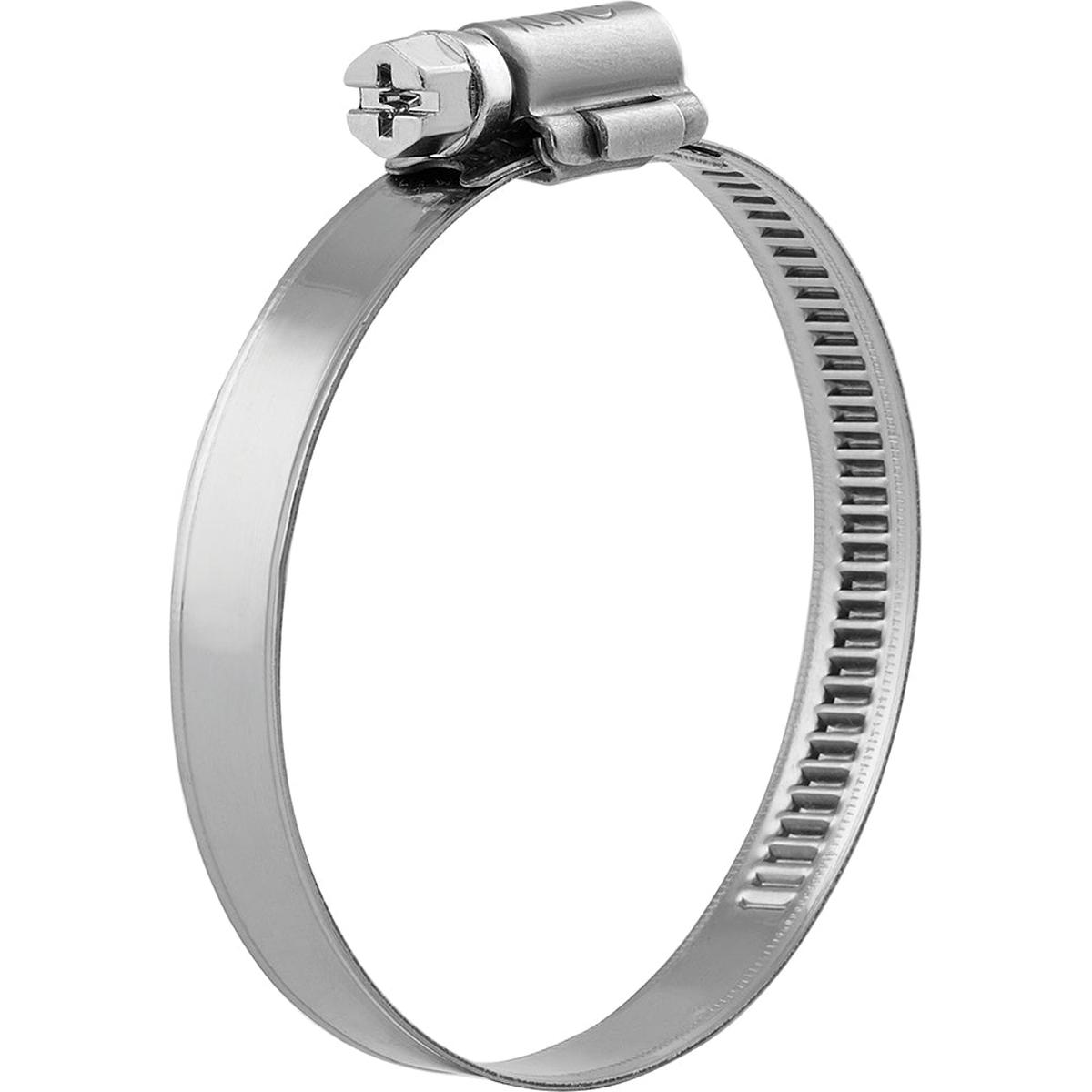

WD980100W2 – 9mm Band Width Worm Drive Clamp
WD9 | 80-100mm capacity | W2
Features: Light product easy assembly and space saving withcompact housing and screw design. Stronger and durable with the mechanically locked singlepiece design of housing. Burr-free and convex band edges. 100% traceability on the product. High clamping force with low tightening torque.
Technical Spec: Band Width – 9mm Capacity (min – max) – 80-100mm Tightening Torque (max) – 3.0Nm (1) Screw Housing Length – 24mm Grade W2 – Zinc Plated Mild Steel Screw / Stainless Band& Housing (2) Corrosion Resistance (min.Hour) IS0 9227 – 72 Screw Head – PH/FL | 7mm Hex
(1) Recommended tightening torque. Recommended tighteningspeed 300 – 350 rpm(2) Screw – Mild Steel | Housing & Band – 1.4016 StainlessDIN EN-10088-2 or equivalent
KALE is certified with ISO TS 16949 ISO 9001 ISO 14001management systems as per the expectations of the globalautomotive industry.
