Application
– Nissan RB20DET / RB25DET Skyline
– Universal application: 2000~3500cc

Wheel Spec.
Compressor wheel: 50.5 / 68 mm (18G Billet Wheel)
Turbine wheel: 49.2 / 56 mm (TD05H / 12 blade )

Compressor Housing
– A/R 60
– Compressor Inlet : 80.5 mm / 3.25 – Compressor Outlet : 51mm / 2

Turbine Housing
– 8cm (A/R .57)
– T3 Inlet Flange
– Internal Gate
– Bolt on to fit stock exhaust manifold and dump pipe.
– Cover inlet and outlet needs to be modified.
– W/G Diameter : 28.0 mm

Bearing System
Journal Bearing

Cooling System
Oil & Water Cooled

Kit includes

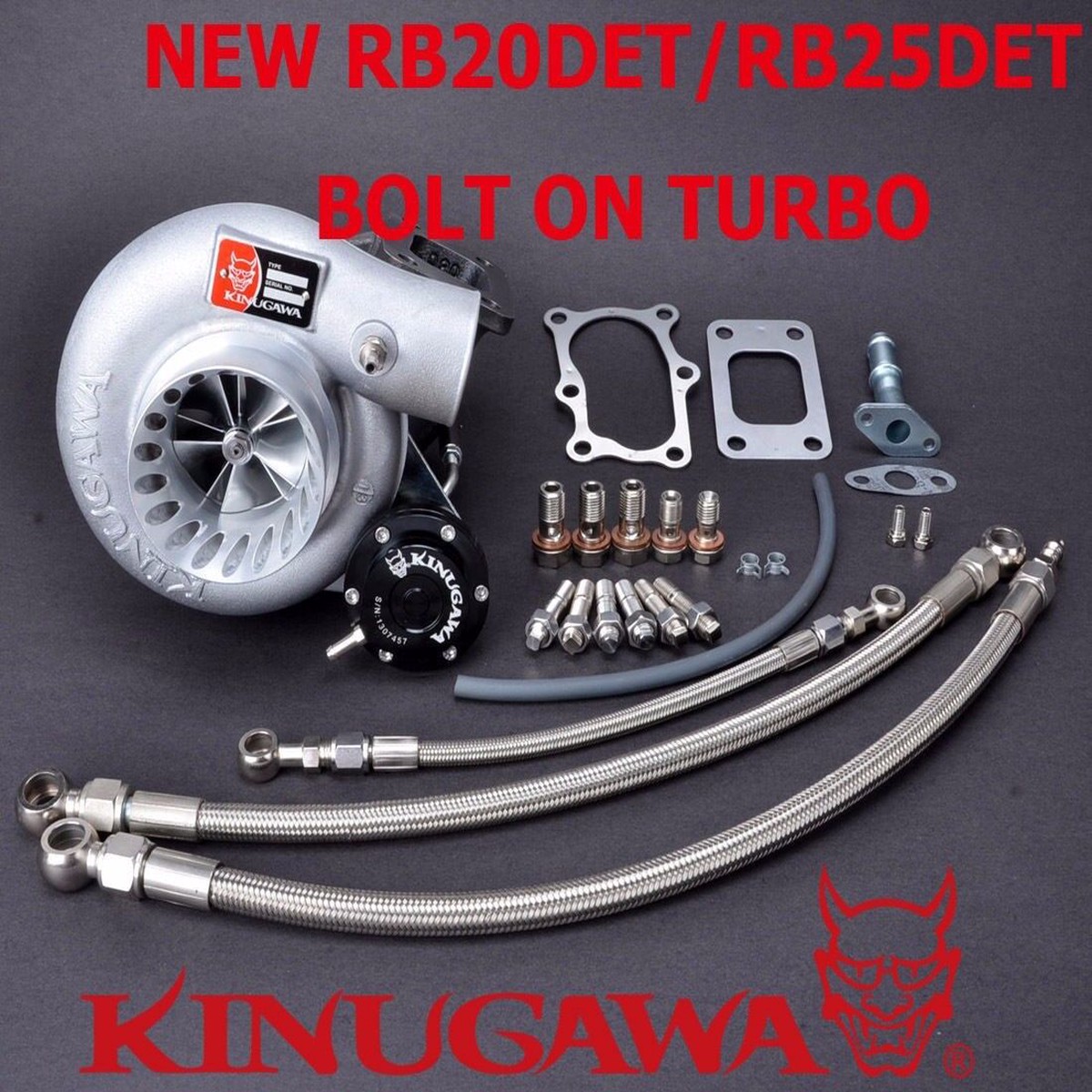

(Everything shown on picture included)
– 1.0 Bar spring installed.
– Actuator position can be 360 Degree rotated easily.

Notes
ONE YEAR WARRANTY
