Application
– Nissan RB20DET / RB25DET Skyline R31 R32 R33 R34
– Universal application: 2000~3500cc

Wheel Spec
– Compressor wheel: 60.5/78 mm (25G cast wheel)
– Turbine wheel: 58.8 / 67.2mm (TD06H 11 blade high Flow wheel)

Compressor Housing
– A/R 60
– Compressor inlet : 80.5 mm / 3.15
– Compressor outlet : 51mm / 2

Turbine Housing
– 10cm (A/R .73)
– T3 inlet flange
– Internal gate
– Bolt on to fit stock exhaust manifold and dump pipe.

Bearing System
Journal bearing / Kamak performance thrust bearing kit

Cooling System
Oil and water cooled system

Boost Limit
2.8 Bar

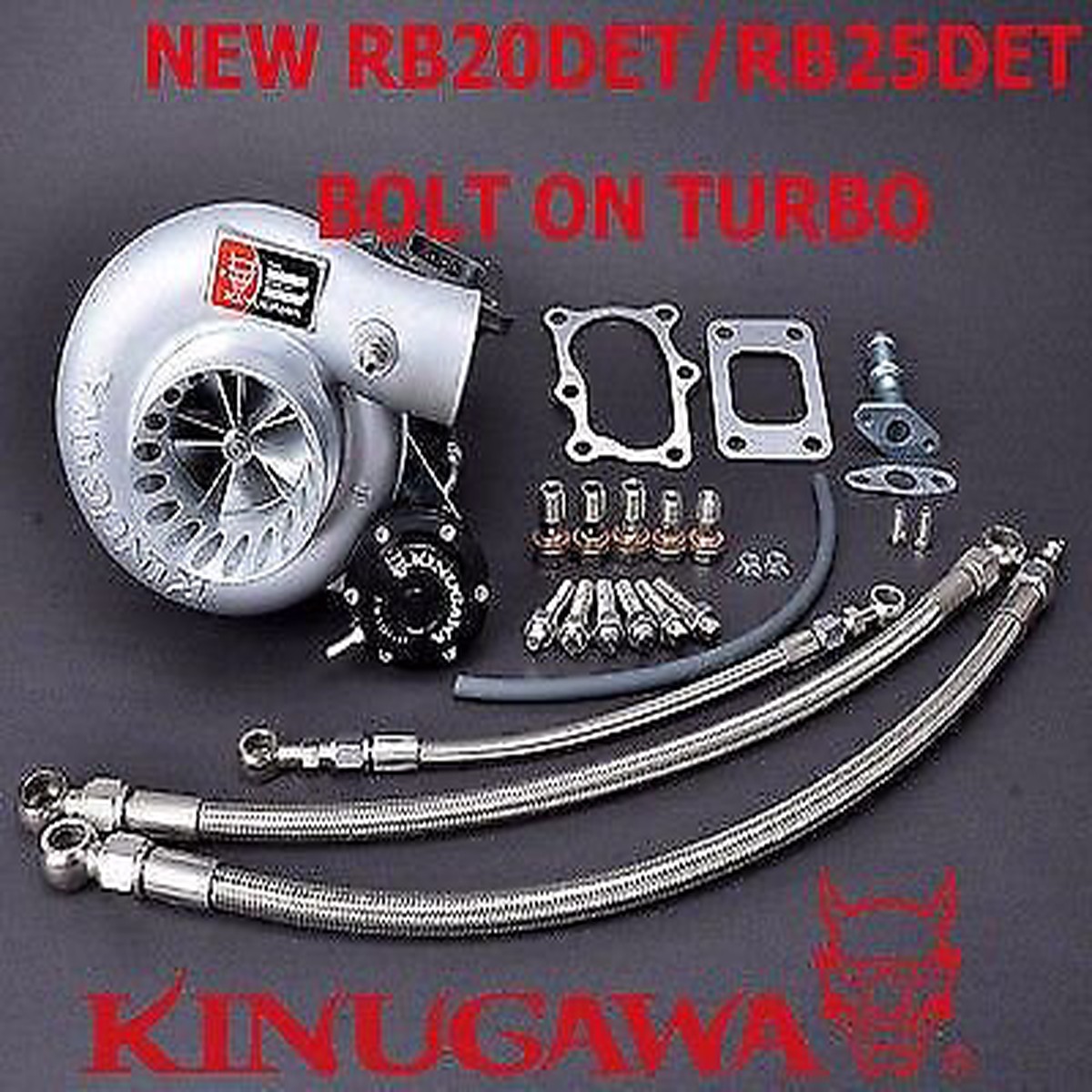

Kit includes
(Everything shown on picture included)
– 1.0 bar / 15 PSI spring installed.
– Actuator can be easily rotated 360 degrees.
