Product Info

Item Name

Kinugawa TD04-15T Upgrade 4D56T / 2.5L Delica Turbocharger with actuator

Item No.

Application

– Upgrade Mitsubishi 4D56T / 2.5L Pajero, Delica, Shogun,L200, L300 stock TF035 TD04 turbo with smaller turbo to 15T monster turbo. – This turbo comes with actuator hooked on cover directly to prevent air leaking through flapper. – Get extra 30~50% torque and HP.

-REPLACES:49177-015xx turbocharger with 3 bolt turbine Outlet

Wheel Spec.

– Compressor wheel : 42/56 mm (15T)

– Turbine Wheel: 40/47.2 ( Stock TD04 )

Compressor Housing

Turbine Housing

4cm / A/R .25 Turbine Housing

Bearing System

Journal Bearing / Kamak Performance Thrust Bearing Kit

Cooling System

Water cooled system

Max HP

Boost Limit

Suggested Limit

Kit includes

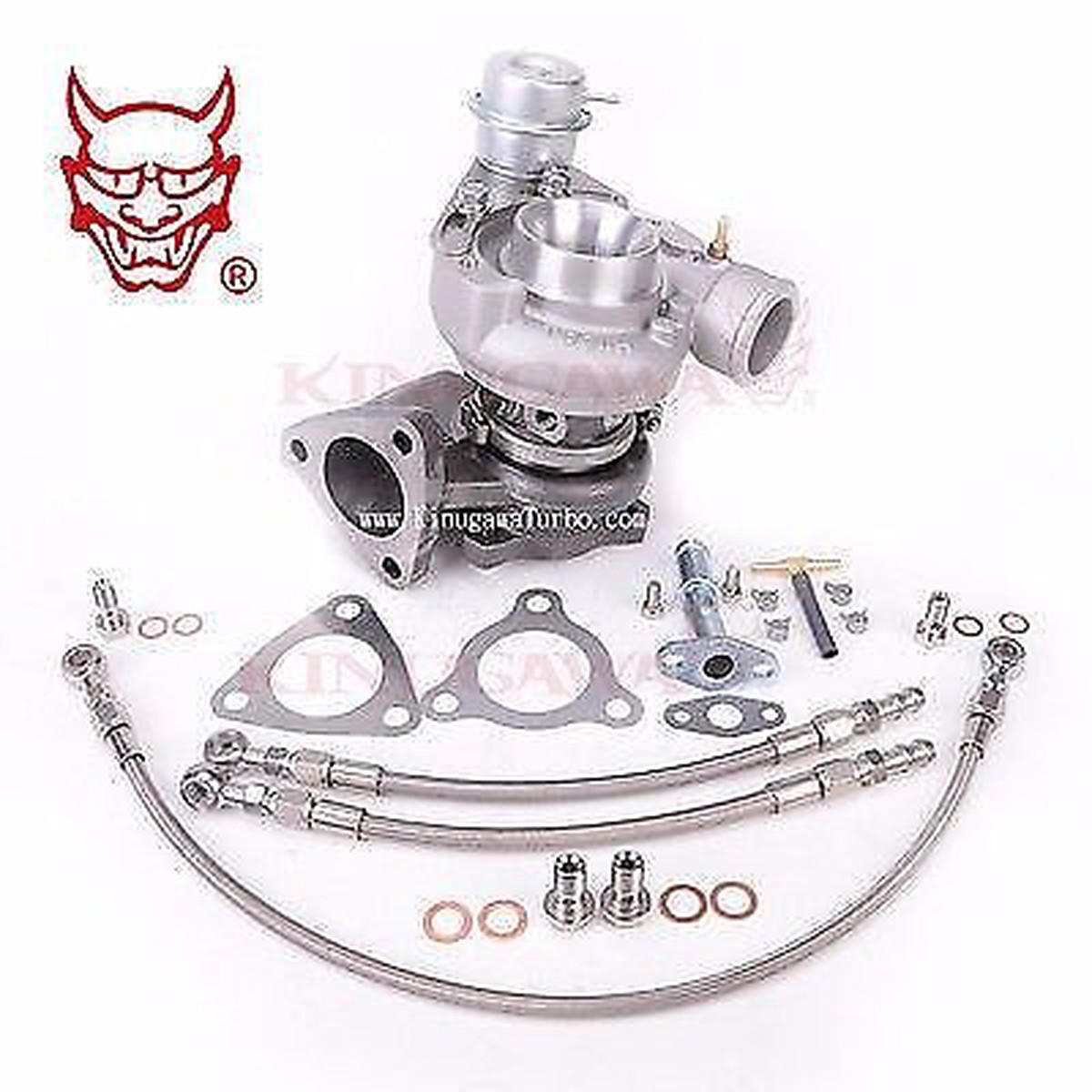

(Everything shown on picture included)

–0.6Bar Actuator with go with box if buyer doesnt contact us to change actuator.

–0.5bar, 0.8Bar, 1.0Bar, and 1.2 bar actuator is available, please contact us if you need to boost higher.

Made by

Notes

Kinugawa Turbo

ONE YEAR WARRANTY

Shipping Information

Area

Shipping

Delivery Days

Shipping Way

USA

Free

4~6

USPS EMS

Canada

60

3~7

USPS / DHL

Asia Europe

60

5~7

USPS EMS

Africa,South America

60

5~7

USPS EMS
