Product Info

Item Name

Kinugawa SUBARU TD05H- 18G Turbocharger with 7cm turbine housing and Billet Adjustable Actuator

Item No.

Application

98~08 EJ20 EJ25 Subaru WRX TD04L GC8 / GDA/GDB Single Scroll Turbo 95~Now EJ20 EJ25 Subaru STI IHI RHF55 / RHF5HB Turbocharger.

It can replace TD04L WRX directly without modification

Wheel Spec.

Compressor wheel: 50.3 / 68 mm 18G Cast wheel

Turbine Wheel : 49.1 / 55.8mm ( TD05H Turbine wheel)

Compressor Housing

Turbine Housing

7 cm^2 Ported Turbine Housing 34mm Larger Turbine Flapper

Bearing System

Journal Bearing /Performance Thrust Bearing Kit with larger thrust ring and flinger made by KAMAK Dynamics.

Cooling System

Oil & Water cooled system

Max HP

Boost Limit

Suggested Limit

330~400BHP

2.8 Bar

1.5 Bar / 22 Psi

Kit includes

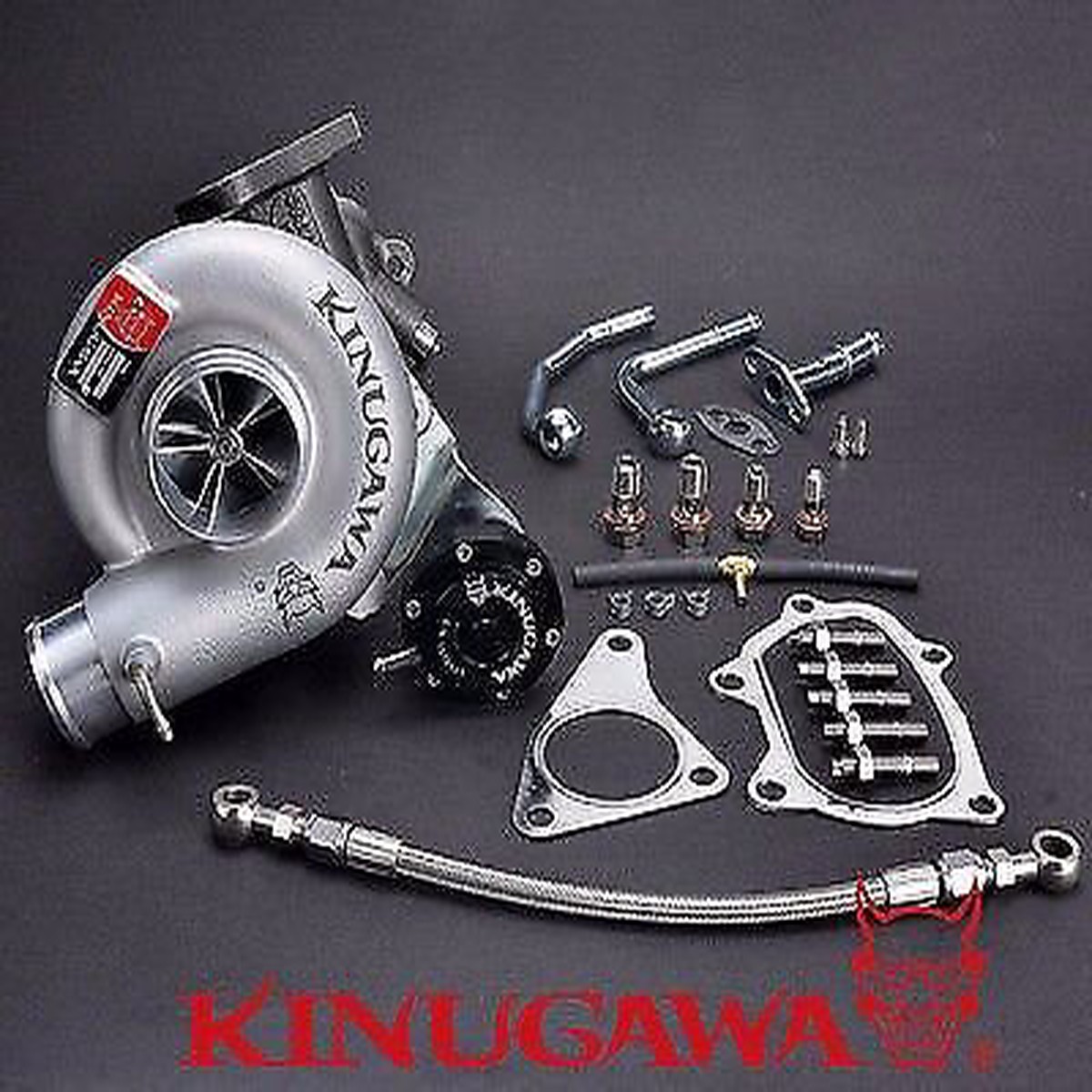

(Everything shown on picture included)

– 1.0 Bar spring installed.

– 0.5Bar, 0.8Bar, 1.0Bar, 1.2Bar, 1.5bar, 1.7bar and 2.0bar spring are available on our ebay shop, we will combine shipping when we receive the order. – Actuator position can be 360 Degree rotated easily.

Made by

Notes

Kinugawa Turbo

ONE YEAR WARRANTY
