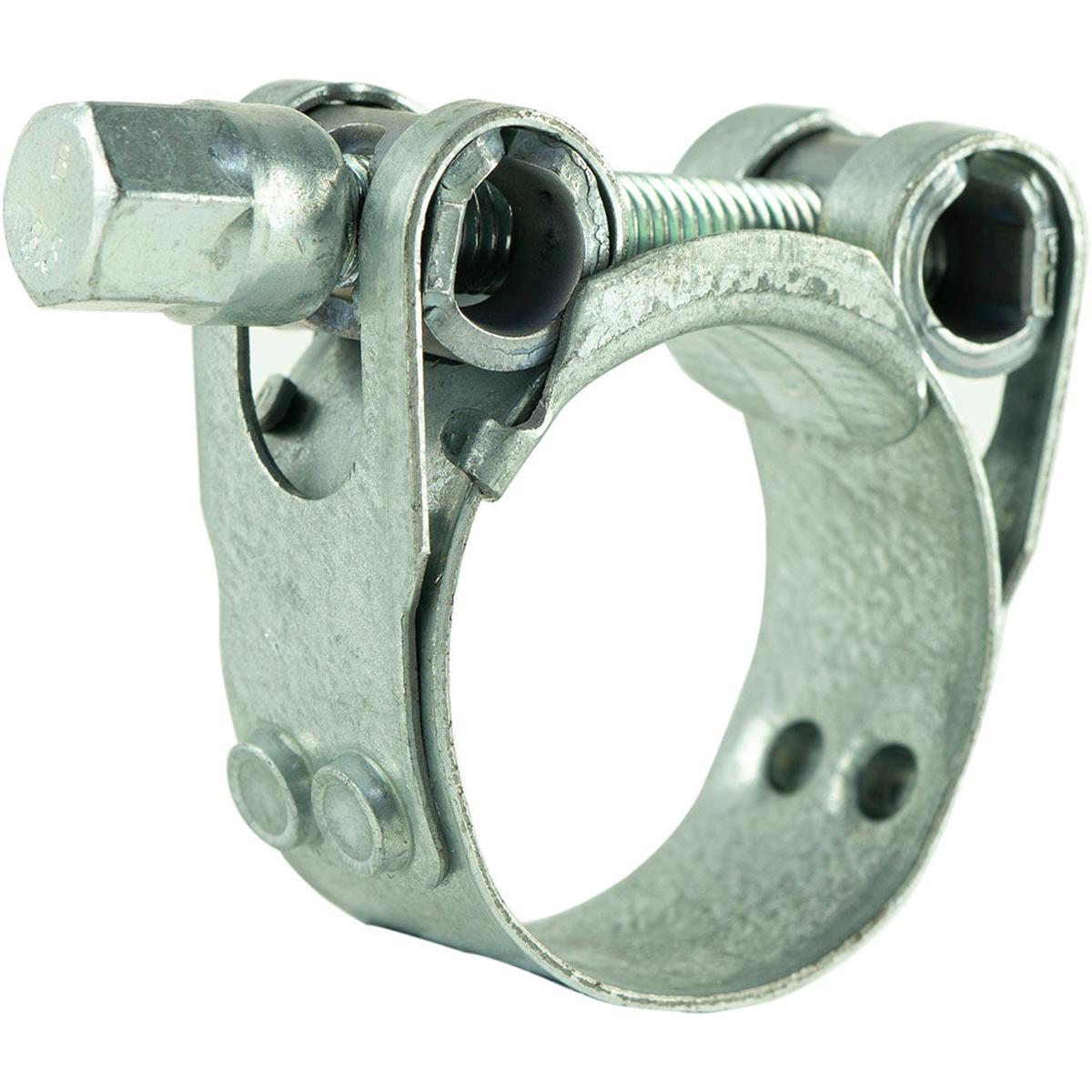

HD25121130W1T | Kale HD25 121-130mm W1 TOX (ea)

Innovatively designed and meticulously engineered KaleHeavy Duty T-Bolt clamps have achieved new standards inperformance and reliability
Kale HD T-Bolt clamps are manufactured utilisingTOX-Clinching joints. A cold forming press technique thatis more than 70%stronger than welding and superior to tabstyle mechanicallocks.Produced in Europe to DIN 3017-3 standards Kale HDT-Boltclamps are suitable for high shore hardness orreinforcedhoses.
Additional design features include: No welding and no contact corrosion points Hollow D shape trunnions to reduce tensile force onthebolt and clinched joint A profiled bridge with extended tabs for secureattachmentto the band without welding W1 steel bolts are Class 8.8 and feature anintegratedspacer in place of a separate bush Rolled band edges which are designed to protect damagetothe hose or wall fabric A high clamping force with low free torque value.
Specification Band With: 25mm Hex: 13mm Diameter Range: 121-130mm Tightening Torque: 20Nm
Materials Band: Carbon Steel Bridge: Carbon Steel Bolt: ISO 898-1 Class 8.8 Bush: – Trunnion: Carbon Steel Corrosion Resistance acc. to ISO 9227: Min. 72 hoursZinc Plated
Available in 2 materials (W1 and W4) in sizes rangingfrom17-19mm through to 239-252 mm typical applicationsincludesuction and pump hoses across a wide range of Industries Agriculture Automotive Marine Mining Plumbing OEMs.
