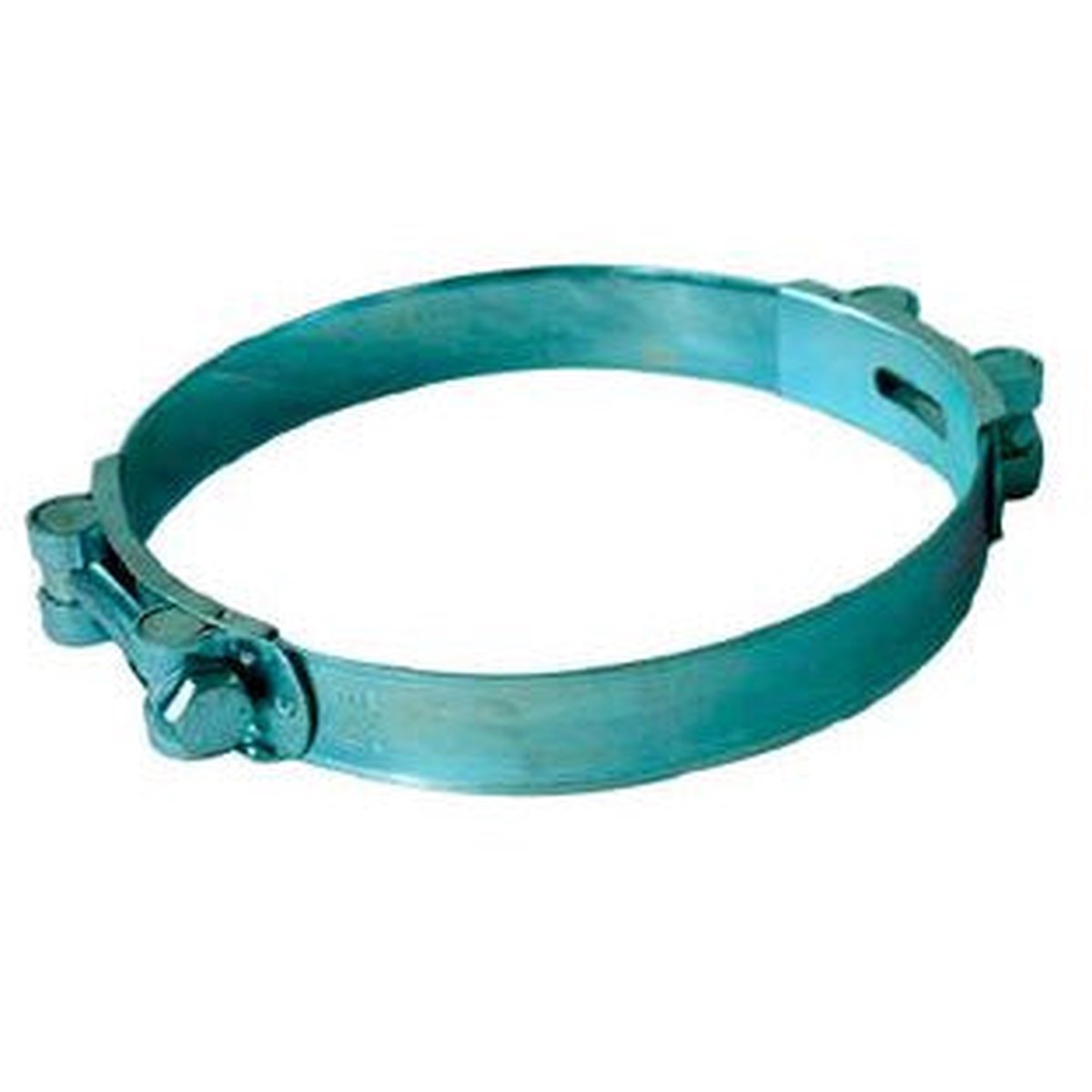

113-121 M10 Maxi Clamp Double Bolt
113-121 M10 Maxi Clamp Double Bolt
The113-121 M10 Maxi Clamp Double Boltis a high-strength, heavy-duty hose clamp designed for secure fastening of large-diameter hoses, pipes, and ducts in high-pressure and high-vibration environments. Featuring a double-bolt mechanism and an M10 bolt, this clamp provides superior clamping force...
The113-121 M10 Maxi Clamp Double Boltis a high-strength, heavy-duty hose clamp designed for secure fastening of large-diameter hoses, pipes, and ducts in high-pressure and high-vibration environments. Featuring a double-bolt mechanism and an M10 bolt, this clamp provides superior clamping force and even pressure distribution, making it ideal for industrial, automotive, marine, and HVAC applications.
| Specification | Value |
|---|---|
| TYPE | Double Bolt Clamp |
| DESIGN | Double bolt system to provide superior clamping force and even pressure distribution |
| MATERIAL | Steel for corrosion resistance for extended lifespan |
| WEIGHT(LBS) | 1.080 |
| BOLT SIZE | 10 mm |
| FINISH | Silver Zinc-Plated |
| MAXIMUM CLAMP DIAMETER | 4.76″ |
| MINIMUM CLAMP DIAMETER | 4.45″ |
| NOMINAL SIZE | 113 to 121 mm |
| NUMBER OF BOLTS | 2 |
| SERIES | Maxiclamp Series |
| THICKNESS | 1.7 mm |
| TORQUE RATING | 30 N-m |
| WIDTH | 30 mm |
| APPLICATIONS | Ideal for industrial, automotive, marine, and HVAC applications |
| BRAND | Midland Industries |
Link to Midland Industries Catalog
